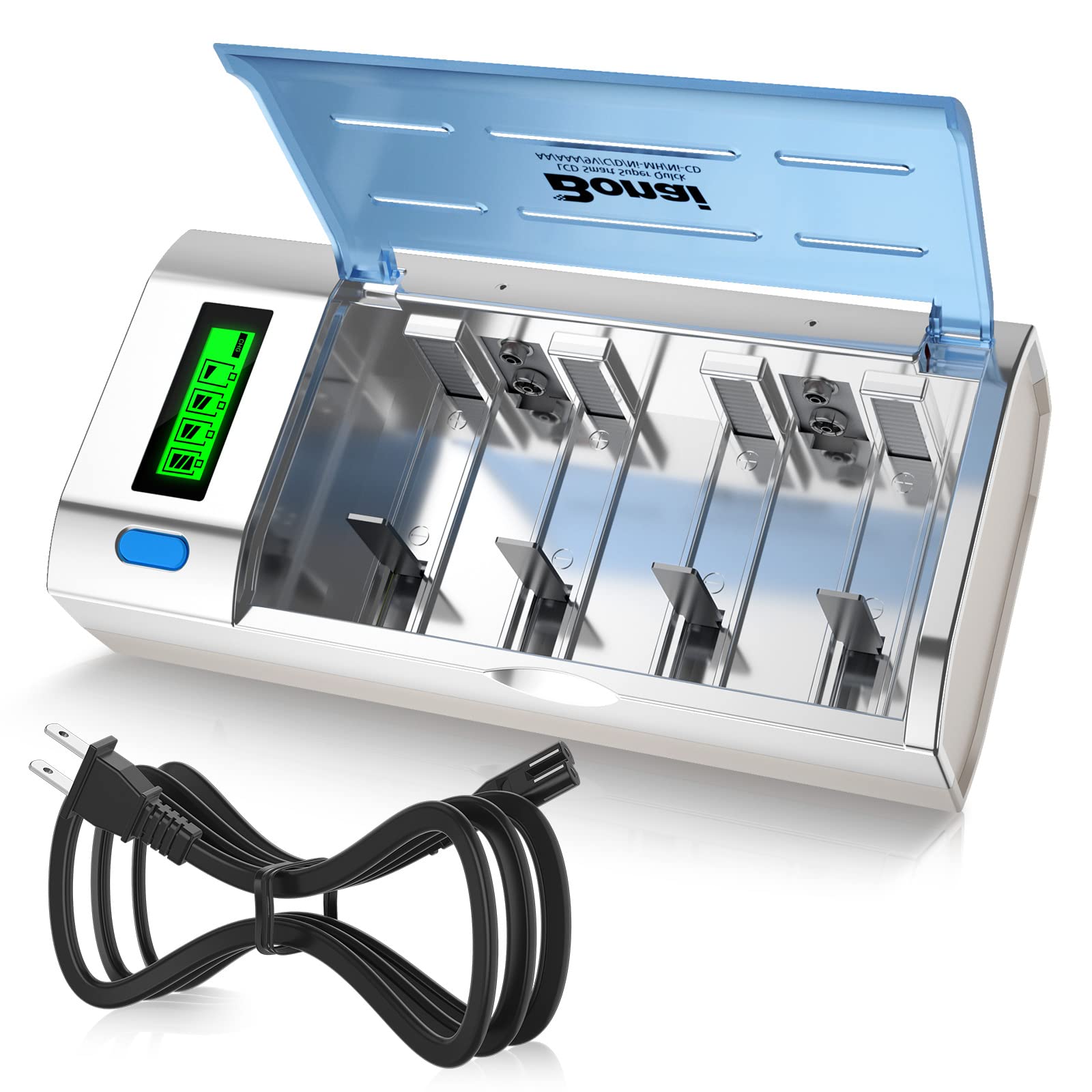

BONAI Universal LCD Battery Charger for AA AAA C D 9V NiMH NiCD Rechargeable Batteries with Discharge Function - Fast Charging for Home, Office, and Electronic Devices

Notice： You can observe the charging process of the batteries directly & clearly through the LCD screen and the LED only works for 9V Batteries. The LED turns red when charging 9V NiMH and Li-ion batteries, fully charged, red turns to green. If no battery in the slot, the green light doesn't go out. The charging time depends on the capacity of the battery.Please don't charging 2 pcs of AA or AAA batteries by stacking them in one slot, otherwise, neither of them will be charged. Compatible Models: An Independent charging slot can charge different compatible batteries. For Ni-MH Ni-CD rechargeable batteries: 1/2/3/4 AA, AAA, C, D, and 1/2 9V batteries. Environment: Using Environment: 0-40℃, Humidity: ≤85% Storage Environment: -10-40℃, Humidity: ≤60% Working Temperature: Surface temperature of the charger ≤60℃ Surface temperature of the battery ≤45℃ Charging Time Table: 1pc Battery Type (Ni-MH) Capacity Charging Time (approx.) AAA 500-1200mAh 1-3 hours AA 1300-2800mAh 1.5-3.5 hours C 1800-5000mAh 2-6 hours D 1800-10000mAh 2-10 hours 6F22 9V 150-600mAh 5-20 hours Specifications: Input: AC 100-240V 50/60Hz,10W Output: AA/AAA/C/D, 1.2V DC x 4 1000mA 6F22 9V: DC 30mA Introduction of the Battery Charger When charging AA AAA C D batteries, make sure that they have been put in the right direction. There are "+""-" poles engraved on the battery chargerLCD screen shows charging status accordingly for AA AAA C D batteries from bottom to top while batteries inserted from left to right Battery Charger with Discharge Function “CHG” -- Charging“DISCHG” -- Discharging, by pressing the blue button“ERROR” -- Battery inserted in a wrong direction or the battery is malfunctioning Packaging includes A Bonai LCD Universal chargerAn AC charging cable Unique Trickle Charging Mode Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection prevent over-charging, short circuit, and reverse polarity. Attention: * Please ensure the battery installed is correct: make the +/- poles of the battery matching with the +/- poles of the charger. * Never mix charge batteries in different types and different capacities. * It is normal that the battery is warmer than room temperature when charging. * Do not disassemble or reassemble the charger by yourself.

Multi-Functional Independent charging slot. It can random charge up to 4 batteries of AA/AAA/C/D size, or double 9V NiMH/NiCD rechargeable batteries at the same time. One battery charged at a time is feasible. Note One charging slot only charges one battery, not two

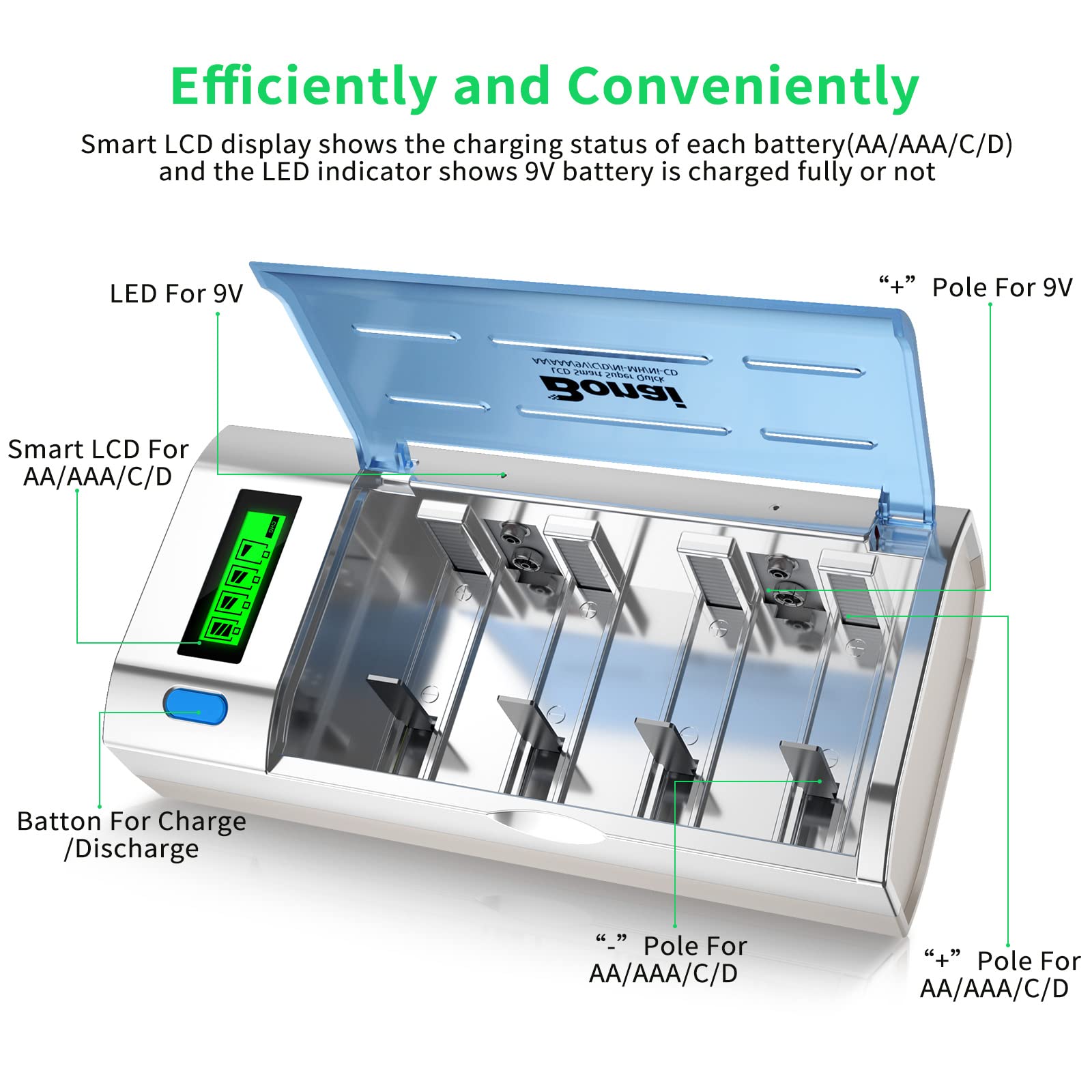

LCD Display You can observe the charging process of the batteries directly & clearly with just a glance of the LCD indicator

Super Rapid Charging Speed Charging AA AAA C D batteries with the current of 1A, making charging 5 times faster than normal ones. Less than 5 hours to fully charged AA AAA C D batteries and less than 12 hours to fully charged 9V batteries

Smart Switch & Claimshell Cover Press the discharge button to discharge and the charger will turn to charging mode when discharging has finished. Claimshell cover protects children & olders from danger, also prevent the interference from outside

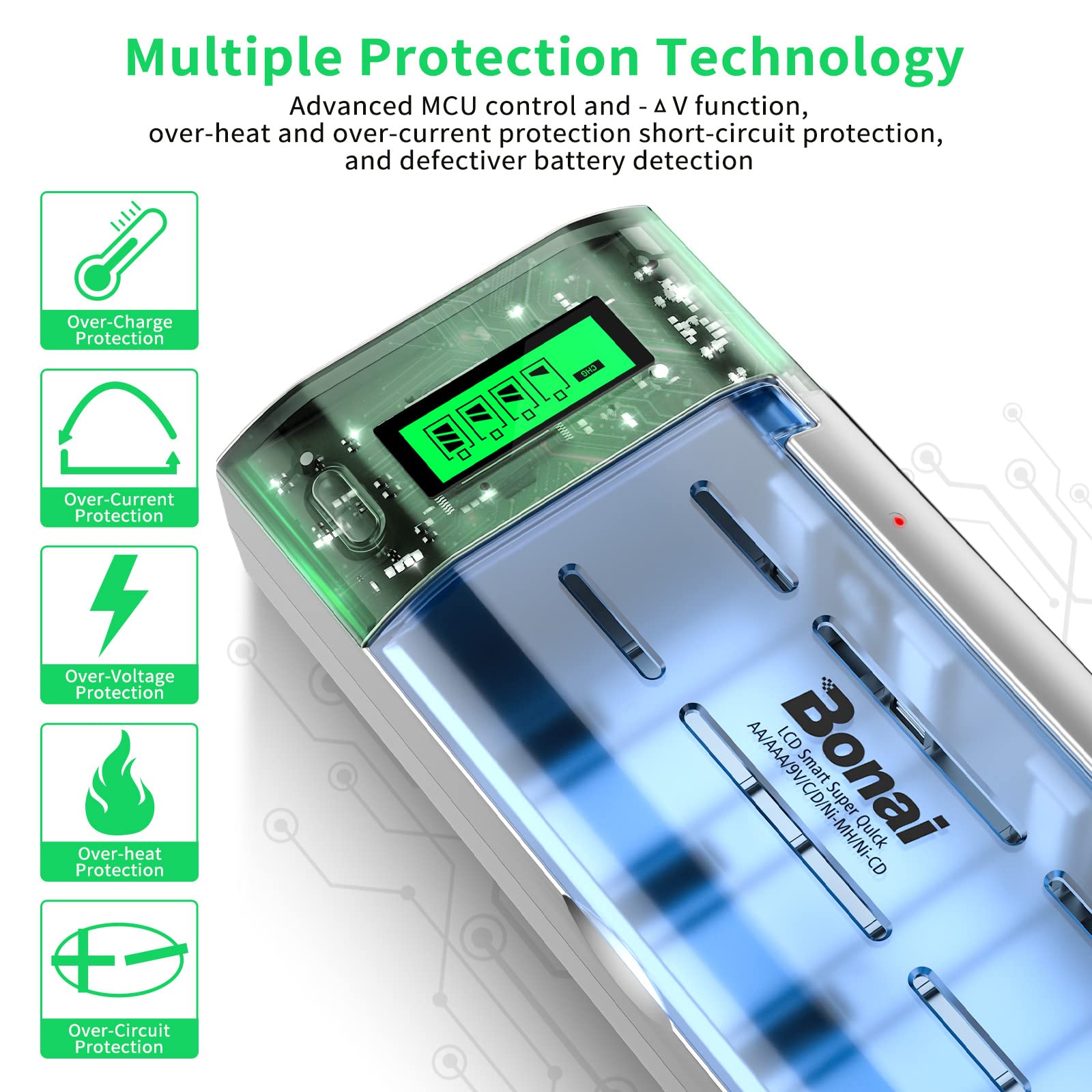

Over Temperature Protection This battery charger will automatically power off when battery's or charger's temperature exceeds 60℃. No need to guard and ensures security anytime
