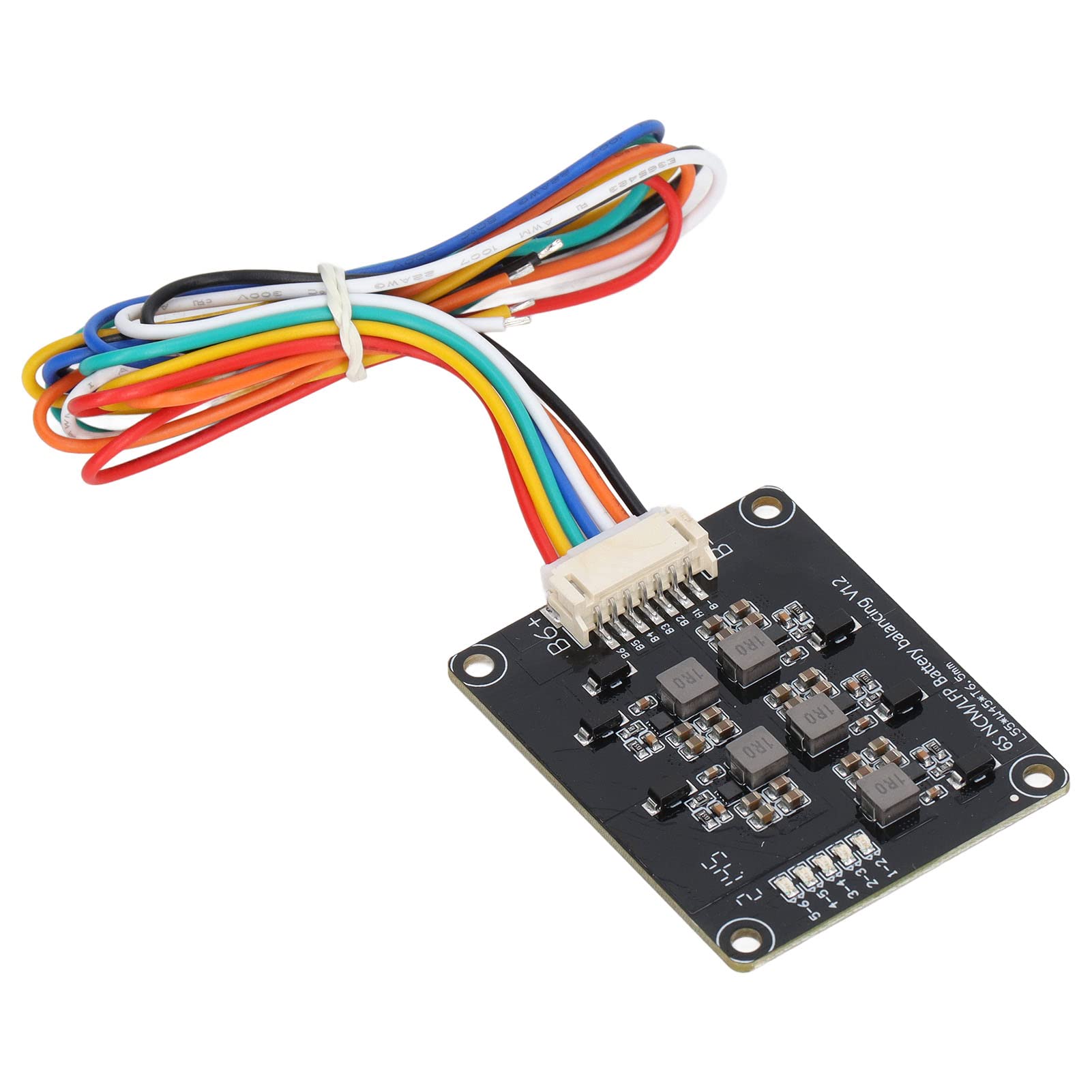

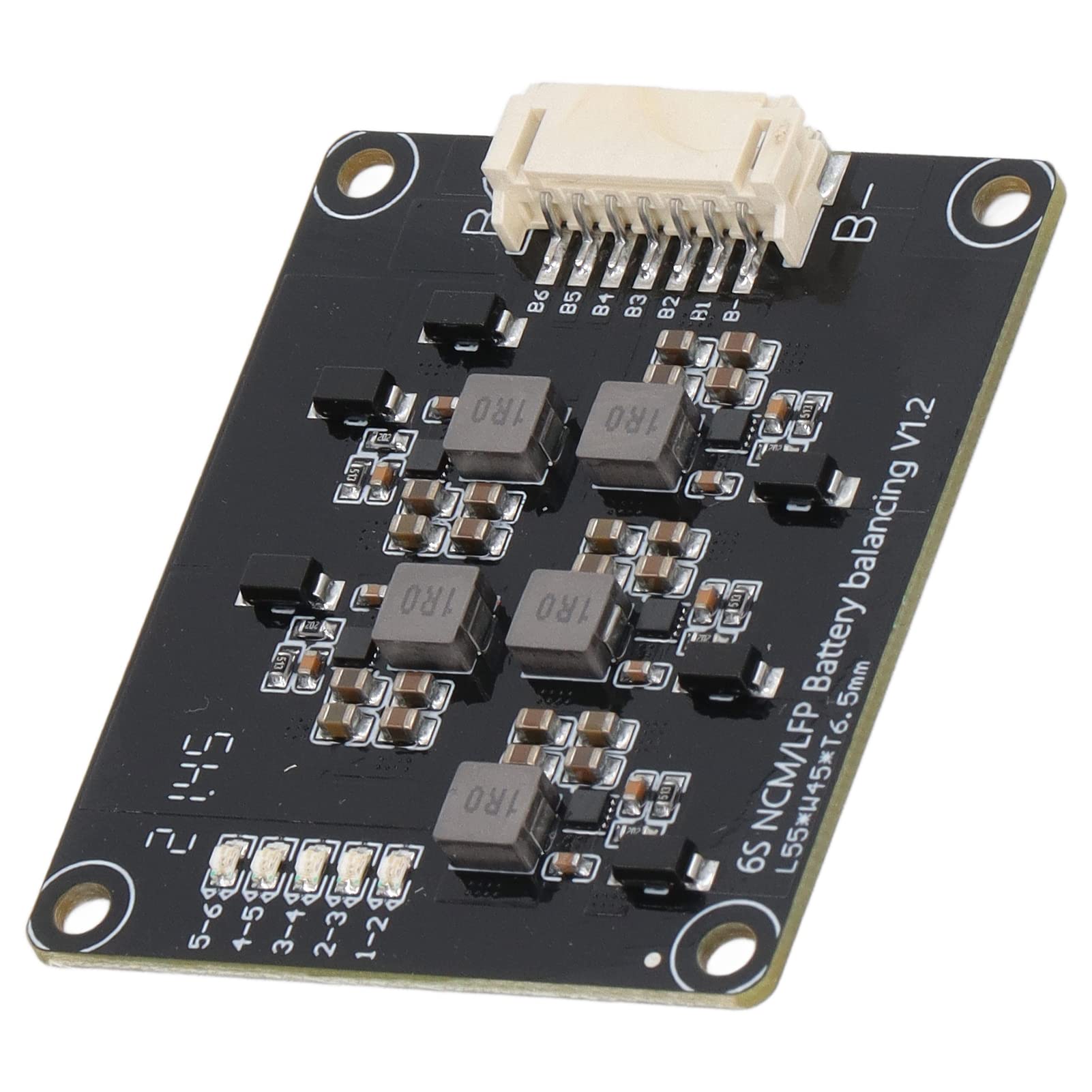

Best Smallest Current Low Internal MOS Lithium Battery Balancer Board with Cable for LFP Batteries - Ideal for DIY Power Banks, Solar Storage & Electric Vehicle Battery Maintenance

Specification:Item Type: Battery Active EqualizerApplicable Battery: NCM(Li ion) or LFP, not suitable for LTO.Single Cell Voltage: 3.0-4.2VRecommended Battery Capacity: Below 30AHVoltage Balance Accuracy: 30mV between adjacent voltages (typ.)Equalization Method: It is detected that the voltage difference between adjacent batteries is greater than 0.1V to the equalization start, and the voltage difference between adjacent batteries is less than 0.03V to stop workingBalance Current: 0.1V voltage difference 0.5A balance current, when the voltage difference is 0.2V, the maximum balance current is 1.2AUnder Voltage Sleep Voltage: The adjacent voltage difference is less than 0.03V, enter the sleep state Quiescent Operating Current: 0.01mAHow to Use:1. When the balance indicator light is on, the balance work is on.2. When the balance indicator light is off, the balance circuit is dormant.3. When the balance indicator light is flashing, power failure or circuit failure.Package List:1 x Battery Active Equalizer1 x CableNote:1. It is not recommended to be compatible with low strings, the indicator light will flash and report an error. Be sure to check that each cell is properly wired and insulated before connecting the balancing board. Otherwise will short circuit and burn the board.2. If the battery is connected, it must be used with the board. The and discharge voltage difference the balance board to work to achieve energy transfer balance.

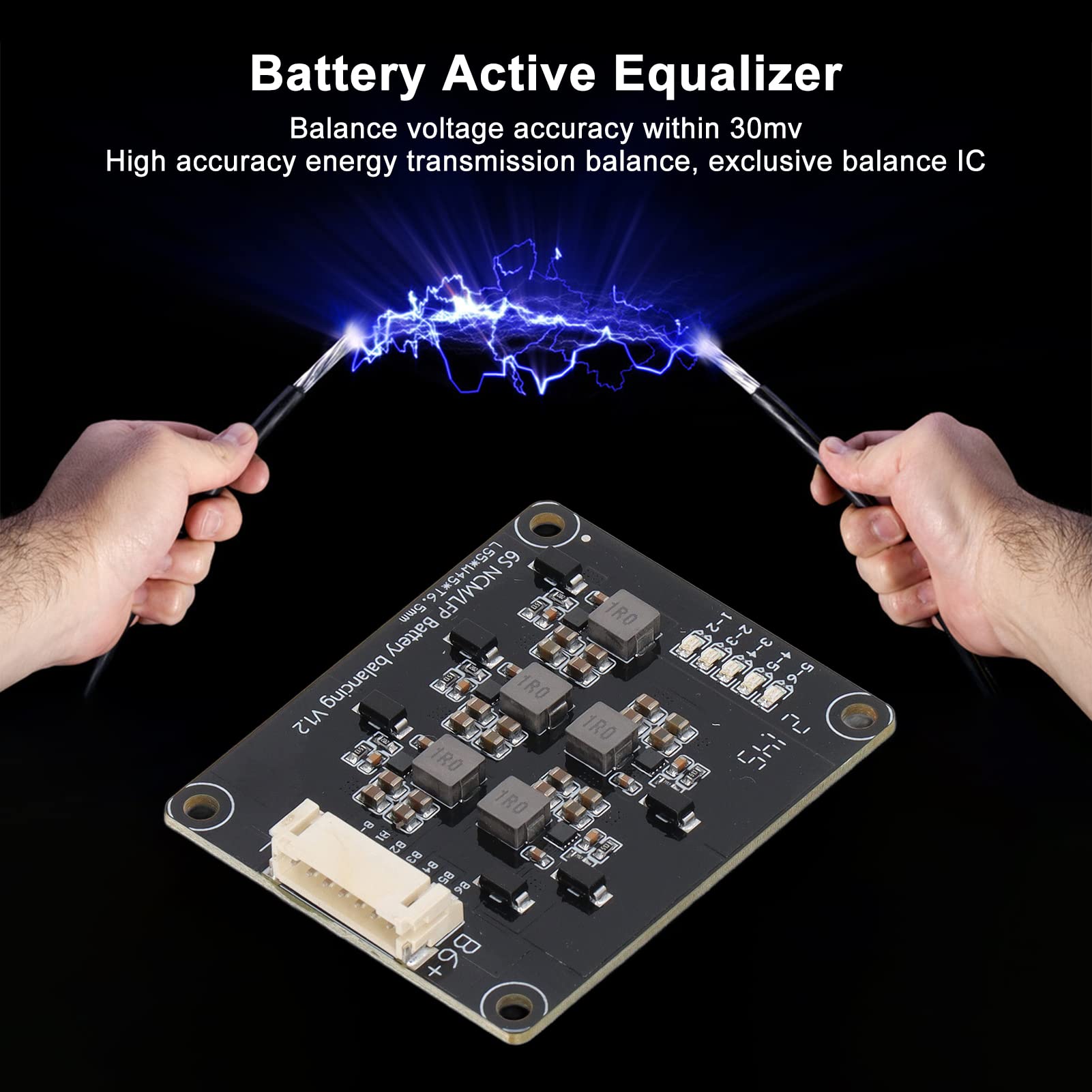

HIGH ACCURACY BALANCE Balance voltage accuracy within 30mv, bring high accuracy energy balance, exclusive balance IC

LOW STATIC POWER CONSUMPTION Battery active equalizer possess smaller current, the static power consumption does not exceed 20uA, with balance instructions

1.2A CURRENT Inductive energy equalization board has 1.2A equalization current, slightly lower accuracy

SMALLER VOLTAGE DIFFERENCE Built in improved ultra low internal MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller

BOARD AUXILIARY The balance board is not a board, but an auxiliary of the board, so no matter how bad the battery test you use, it can be used, but there is no overvoltage or overdischarge function
